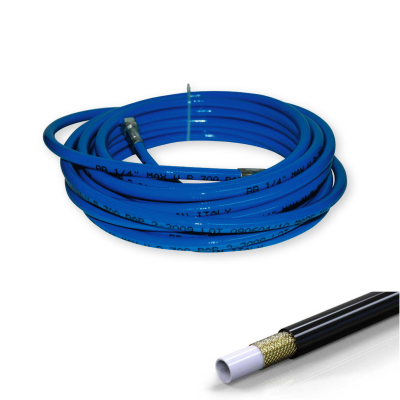

Technical/constructive features: Polyamide inner core, high-strength steel braid reinforcement, and anti-brazing polyurethane outer jacket, microperforated on request for passage of air and compatible gases Applications: These hoses were created for high-pressure conduction of polyols, solvents, paints and compatible gases Temperature of use: -40°C to +100°C -40°F to +212°F For air, water and water-based fluids, the maximum operating temperature is +70°C (+158°F) Operating pressures: 1:4 safety ratio for DYNAMIC pressure 1:3 safety ratio for STATIC pressure Max. vacuum value: 0.93 bar; 700 mm Hg Specifications: Hoses meeting or exceeding the pressures of SAE 100R1 – EN 853 1ST, 1SN – EN 857 1SC standards
| DESCRIPTION | INSIDE Ø mm | OUTER Ø mm | SCOOP min. bar | EXERCISE max. bar | RADIUS OF CURVATURE min. mm | WEIGHT g/m |
|---|---|---|---|---|---|---|
| Tubo HP 3/16” mt1 | 4,8 | 10 | 1800 | 450 | 30 | 131 |
| Tubo HP 1/4” mt1 | 6.4 | 11.9 | 1600 | 400 | 40 | 165 |
| Tubo HP 3/8″ 1 mt | 9.7 | 16 | 1200 | 300 | 60 | 253 |
| Tubo HP 1/2” mt1 | 13 | 19.2 | 760 | 190 | 75 | 314 |
| Tubo HP 3/4” mt1 | 19.2 | 25.5 | 520 | 130 | 150 | 447 |
| Tubo HP 1” mt1 | 25.6 | 32.5 | 420 | 105 | 185 | 590 |
Technical/constructive features: Polyamide inner core, high-strength steel braid reinforcement, and anti-brazing polyurethane outer jacket, microperforated on request for passage of air and compatible gases Applications: These hoses were created for high-pressure conduction of polyols, solvents, paints and compatible gases Temperature of use: -40°C to +100°C -40°F to +212°F For air, water and water-based fluids, the maximum operating temperature is +70°C (+158°F) Operating pressures: 1:4 safety ratio for DYNAMIC pressure 1:3 safety ratio for STATIC pressure Max. vacuum value: 0.93 bar; 700 mm Hg Specifications: Hoses meeting or exceeding the pressures of SAE 100R1 – EN 853 1ST, 1SN – EN 857 1SC standards
